Renaissance
SOME MASTERPIECES ARE MADE OF PAINT OR STONE. OURS, FROM METAL.
Introducing the Sure Comfort® Commercial Renaissance™ Line—the result of years of research and development, creative engineering and innovation. Made with smart new features and exclusive advantages for easy replacement, installation and service.
Uptime Durability
High-quality critical components, lean manufacturing and robust design like Scroll™ compressor technology
Easier Installation
New footprint for seamless installs on most replacement units and faster and easier serviceability to meet customer needs
High‐Efficiency Savings
Energy savings of over 30% compared to current baseline technology for lifetime savings of thousands of dollars
Enhanced Serviceability
ServiceSmart ™ package offers built-in features for quick troubleshooting and easy accesss

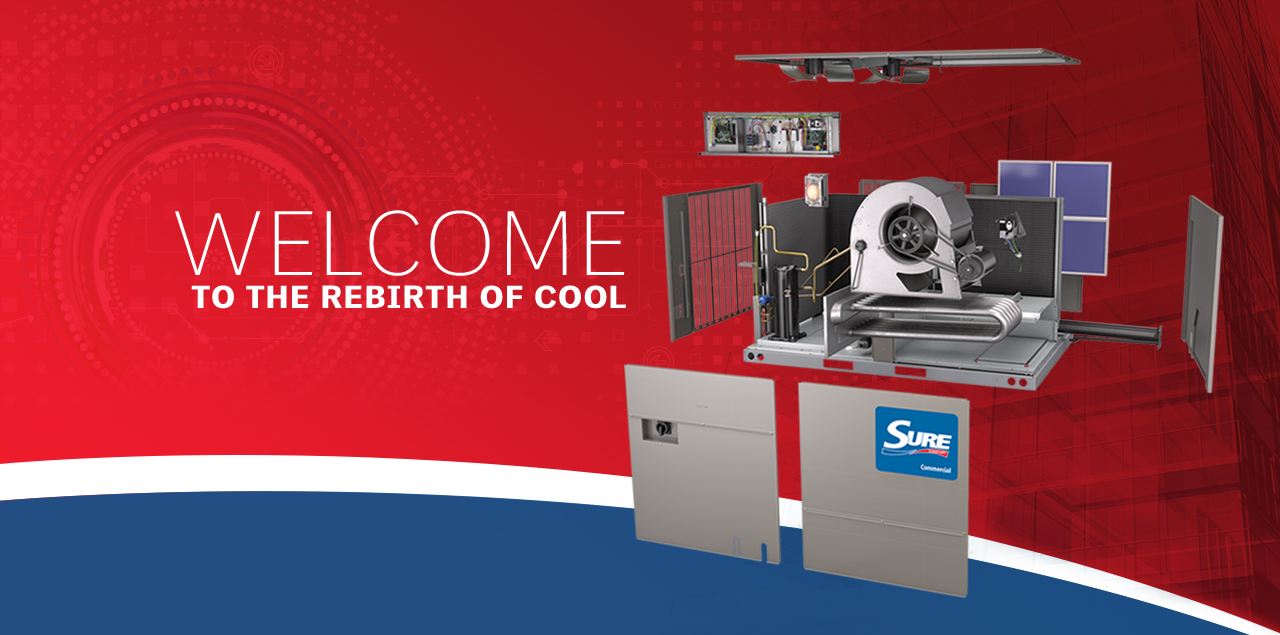

Explore Innovations of the Renaissance Line
Product Details
Choose Category
Package Heat Pumps
| Heat Input | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Nominal Tonnage | Gross Capacity (BTU/HR) | AHRI Rated Net Capacity (BTU/HR) | Nominal CFM/AHRI (BTU/HR) | IEER | 1st Stage | 2nd Stage | Dimensions H x W x L (inches) | Shipping Weight (pounds) |
| RGECZR036 | 3.0 | 36,000 | 35,400 | 1,200/1,300 | N/A | 75,000 | 52,500 | 41 x 45 x 78 | 645 |
| RGECZR048 | 4.0 | 48,000 | 47,500 | 1,600/1,730 | N/A | 75,000 | 52,500 | 41 x 45 x 78 | 668 |
| RGECZR060 | 5.0 | 60,000 | 57,5000 | 2,000/1,950 | N/A | 75,000 | 52,500 | 41 x 45 x 78 | 671 |
| RGECZT072***07 | 6.0 | 70,000 | 68,000 | 2,400/2,400 | 14.6 | 52,500 | 75,000 | 41 x 45 x 78 | 620 |
| RGECZT072***12 | 6.0 | 70,000 | 68,000 | 2,400/2,400 | 14.6 | 84,000 | 120,000 | 41 x 45 x 78 | 620 |
| RGEDZR090A**15 | 7.5 | 88,000 | 85,000 | 3,000/3,175 | 12.7 | 105,000 | 150,000 | 50 x 58 x 89 | 878 |
| RGEDZR090A**20 | 7.5 | 88,000 | 85,000 | 3,000/3,175 | 12.7 | 143,000 | 205,000 | 50 x 58 x 89 | 878 |
| RGEDZR102A**15 | 8.5 | 99,000 | 96,000 | 3,400/3,200 | 12.7 | 105,000 | 150,000 | 50 x 58 x 89 | 907 |
| RGEDZR102A**22 | 8.5 | 99,000 | 96,000 | 3,400/3,200 | 12.7 | 157,500 | 225,000 | 50 x 58 x 89 | 907 |
| RGEDZR120A**15 | 10 | 118,000 | 114,000 | 4,000/3,480 | 12.7 | 105,000 | 150,000 | 50 x 58 x 89 | 935 |
| RGEDZR120A**22 | 10 | 118,000 | 114,000 | 4,000/3,480 | 12.7 | 157,500 | 225,000 | 50 x 58 x 89 | 935 |
| RGEDZS090**15 | 7.5 | 88,000 | 85,000 | 3,000/3,175 | 12.7 | 105,000 | 225,000 | 50 x 58 x 89 | 878 |
| RGEDZS090**20 | 7.5 | 88,000 | 85,000 | 3,000/3,175 | 12.7 | 143,000 | 205,000 | 50 x 58 x 89 | 878 |
| RGEDZS102**15 | 8.5 | 99,000 | 96,000 | 3,400/3,225 | 12.7 | 105,000 | 150,000 | 50 x 58 x 89 | 907 |
| RGEDZS102**22 | 8.5 | 99,000 | 96,000 | 3,400/3,225 | 12.7 | 157,500 | 225,000 | 50 x 58 x 89 | 907 |
| RGEDZS120**15 | 10 | 118,000 | 114,000 | 4,000/3,480 | 12.7 | 105,000 | 150,000 | 50 x 58 x 89 | 935 |
| RGEDZS120**22 | 10 | 118,000 | 114,000 | 4,000/3,480 | 12.7 | 157,000 | 225,000 | 50 x 58 x 89 | 935 |
| RGEDZS150**15 | 12.5 | 148,000 | 142,000 | 5,000/3,750 | 12.2 | 105,000 | 150,000 | 60 x 58 x 89 | 1,133 |
| RGEDZS150**22 | 12.5 | 148,000 | 142,000 | 5,000/3,750 | 12.2 | 157,500 | 225,000 | 60 x 58 x 89 | 1,133 |
| RGEDZT090**15 | 7.5 | 88,000 | 85,000 | 3,000/3,175 | 14.6 | 105,000 | 150,000 | 50 x 58 x 89 | 878 |
| RGEDZT090**20 | 7.5 | 88,000 | 85,000 | 3,000/3,175 | 14.6 | 143,000 | 205,000 | 50 x 58 x 89 | 878 |
| RGEDZT102**15 | 8.5 | 99,000 | 96,000 | 3,400/3,225 | 14.6 | 105,000 | 150,000 | 50 x 58 x 89 | 907 |
| RGEDZT102**22 | 8.5 | 99,000 | 96,000 | 3,400/3,225 | 14.6 | 157,500 | 225,000 | 50 x 58 x 89 | 907 |
| RGEDZT120**15 | 10 | 118,000 | 114,000 | 4,000/3,480 | 14.6 | 105,000 | 150,000 | 50 x 58 x 89 | 935 |
| RGEDZT120**22 | 10 | 118,000 | 114,000 | 4,000/3,480 | 14.6 | 157,500 | 225,000 | 50 x 58 x 89 | 935 |
| RGEDZT150**15 | 12.5 | 148,000 | 142,000 | 5,000/3,750 | 14 | 105,000 | 150,000 | 60 x 58 x 89 | 1,133 |
| RGEDZT150**22 | 12.5 | 148,000 | 142,000 | 5,000/3,750 | 14 | 157,500 | 225,000 | 60 x 58 x 89 | 1,133 |
| Heat Input | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Nominal Tonnage | Gross Capacity (BTU/HR) | AHRI Rated Net Capacity (BTU/HR) | Nominal CFM/AHRI (BTU/HR) | IEER | Low | High | Dimensions H x W x L (inches) | Shipping Weight (pounds) |
| RACCZR036 | 3.0 | 36,000 | 35,400 | 1,200/1,300 | N/A | N/A | N/A | 41 x 45 x 78 | 595 |
| RACCZR048 | 4.0 | 49,000 | 47,500 | 1,600/1,730 | N/A | N/A | N/A | 41 x 45 x 78 | 618 |
| RACCZR060 | 5.0 | 59,500 | 57,500 | 2,000/1,950 | N/A | N/A | N/A | 41 x 45 x 78 | 621 |
| RACCZT072 | 6.0 | 70,000 | 68,000 | 2,400/2,400 | 14.8 | N/A | N/A | 41 x 45 x 78 | 620 |
| RACDZR090 | 7.5 | 88,000 | 85,000 | 3000/3175 | 12.9 | N/A | N/A | 50 x 58 x 89 | 775 |
| RACDZR102 | 8.5 | 99,000 | 96,000 | 3400/3200 | 12.9 | N/A | N/A | 50 x 58 x 89 | 801 |
| RACDZR120 | 10 | 118,000 | 114,000 | 4000/3480 | 12.9 | N/A | N/A | 50 x 58 x 89 | 830 |
| RACDZS090 | 7.5 | 88,000 | 85,000 | 3000/3200 | 12.9 | N/A | N/A | 50 x 58 x 89 | 775 |
| RACDZS102 | 8.5 | 99,000 | 96,000 | 3400/3225 | 12.9 | N/A | N/A | 50 x 58 x 89 | 801 |
| RACDZS120 | 10 | 118,000 | 114,000 | 4000/3480 | 12.9 | N/A | N/A | 50 x 58 x 89 | 830 |
| RACDZS150 | 12.5 | 148,000 | 142,000 | 5000/4150 | 12.4 | N/A | N/A | 60 x 58 x 89 | 1032 |
| RACDZT090 | 7.5 | 88,000 | 85,000 | 3000/3200 | 14.8 | N/A | N/A | 50 x 58 x 89 | 775 |
| RACDZT102 | 8.5 | 99,000 | 96,000 | 3400/3225 | 14.8 | N/A | N/A | 50 x 58 x 89 | 801 |
| RACDZT120 | 10 | 118,000 | 114,000 | 4000/3480 | 14.8 | N/A | N/A | 50 x 58 x 89 | 830 |
| RACDZT150 | 12.5 | 148,000 | 142,000 | 5000/4150 | 14.2 | N/A | N/A | 60 x 58 x 89 | 1032 |
| Heat Input | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Nominal Tonnage | Gross Capacity (BTU/HR) | AHRI Rated Net Capacity (BTU/HR) | Nominal CFM/AHRI (BTU/HR) | IEER | 47 Capacity | Cop 47 Efficiency | 11 Capacity | Cop 11 Efficiency | Dimensions H x W x L (inches) | Shipping Weight (pounds) |
| RHPCZR036 | 3.0 | 36,000 | 35,400 | 1,200/1,280 | N/A | 34,400 | 3.7 | 20,000 | 2.4 | 41 x 45 x 78 | 595 |
| RHPCZR048 | 4.0 | 47,000 | 46,000 | 1,600/1,685 | N/A | 46,000 | 3.5 | 20,000 | 2.0 | 41 x 45 x 78 | 618 |
| RHPCZR060 | 5.0 | 59,500 | 57,500 | 2,000/2,050 | N/A | 57,500 | 3.5 | 35,000 | 2.0 | 41 x 45 x 78 | 621 |
| RHPCZT072 | 6.0 | 70,000 | 68,400 | 2,400/2,400 | 14.1 | 68,000 | 3.4 | 41,000 | 2.25 | 41 x 45 x 78 | 621 |
| RHPDZS090A** | 7.5 | 89,000 | 86,000 | 3000/3030 | 12.2 | 86,000 | 3.3 | 48000 | 2.3 | 50 x 58 x 89 | 814-825 |
| RHPDZS102A** | 8.5 | 101,000 | 98,000 | 3400/3345 | 12.2 | 98,000 | 3.3 | 60000 | 2.3 | 50 x 58 x 89 | 850-861 |
| RHPDZS120A** | 10 | 119,000 | 114,000 | 4000/4060 | 12.2 | 114,000 | 3.3 | 72000 | 2.3 | 50 x 58 x 89 | 902-913 |
| RHPDZT090A** | 7.5 | 89,000 | 86,000 | 3000/3030 | 14.1 | 86,000 | 3.4 | 48000 | 2.3 | 50 x 58 x 89 | 814-825 |
| RHPDZT102A** | 8.5 | 101,000 | 98,000 | 3400/3345 | 14.1 | 98,000 | 3.4 | 60000 | 2.3 | 50 x 58 x 89 | 850-861 |
| RHPDZT120A** | 10 | 119,000 | 114,000 | 4000/4060 | 14.1 | 114,000 | 3.4 | 72000 | 2.3 | 50 x 58 x 89 | 902-913 |
Why Sure Comfort Commercial?
Building on more than a century of innovation, the Sure Comfort Renaissance line is the next step in this evolution—commercial HVAC solutions designed to deliver advanced comfort, flexibility and support for any business application. All backed by the expert commercial support offered by Sure Comfort.BIM Support
More accurately design and estimate cost for jobs in less time with compatible spec data, 2D and 3D CAD® files and Revit® files.
RapidSpec™ Selection Tool Software
We offer smart selection tools to help you specify, select and document all Sure Comfort equipment for new construction or replacement in all commercial applications. www.rapidspec.com/
Customized Solutions
With a breadth of heating and cooling solutions and built-to-order systems to suit your business needs, design and application requirements—there’s no need to overpay for unnecessary “packages.”
Guaranteed Performance
Sure Comfort backs every commercial unit with our industry-leading commercial limited warranty—so your business can count on protected performance year after year.
Faster Lead Time
A vast distribution network across the US and Canada means improved factory lead times to help avoid business downtime.
Dedicated Technical Support
From our dedicated support team to resources such as our Sure Comfort College, live product assistance and more, Sure Comfort is here to support you at every step.
More Information
1Per a MIAT Commercial HVAC Competitive Time Study, conducted June 4–6, 2019. 2Available on 3-5 Ton Heat Pumps only – coming Q4 2019. 3HumidiDry is available on ZS/ZT models, and will be available on 3–6 Ton ZR/ZS models in 2020. 4Only applicable to 3–5 Ton Gas Electric models.
