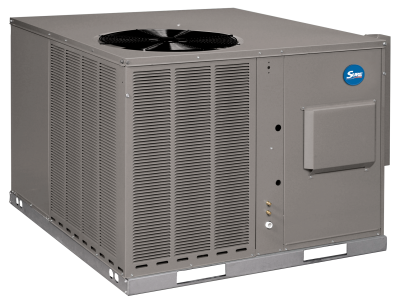

Commercial Package Gas/Electric

RGEA14

Product Info
  • All models feature Scroll® compressors for maximum efficiency and quiet operation.
  • Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes.
  • One-piece top with a deep flange to help keep water out of the unit.
  • Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork.
  • Access panels have “weep holes” and channels to further help manage water run-off.
  • Side and down discharge options available on all models. All models are shipped ready for horizontal application.
  • Easily accessible blower section complete with slide-out blower.
  • Refrigerant connections are conveniently located for easy service diagnostics.
  • Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. Its easier to clean and has a more robust surface.
  •  Inside the easily accessible furnace compartment is the draft inducer motor. This motor is specially designed for quiet reliable operation. In addition to the draft inducer motor, the in-shot gas burners and manifold efficiently regulate the flow of gas for combustion. These new gas/electric units also feature direct-spark ignition and remote flame sensors for added reliability and efficiency.
  • All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
  • Easily accessible control box.
  • Single point wiring simplifies installation.
  • Our gas/electric package units feature a tubular heat exchanger design. Tubular heat exchangers are more efficient and durable than older-style clamshell heat exchangers. The heat exchanger is backed by a 10 year limited warranty. Models with a stainless steel heat exchanger installed in a residential application are backed by a limited lifetime warranty.
  • Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions.
  • Filter drier standard on all models (not shown).
  • Rugged baserail included for improved installation and handling
  • Complete factory charged, wired and run tested.
  • Molded compressor plugs.
  • A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality.

Specifications

  • Efficiencies 14 SEER
  • Meets 81% AFUE Standards
  • 1 & 3 Phase Models
  • Scroll® Compressor
  • Micro Channel Coil
  • Nominal Size: 2 - 5 ton

Documents

RGEA14

Conditional Parts Warranty - 10 Years (1 & 3 Phase, Residential Applications)

Stainless Steel Heat Exchanger - Limited Lifetime (Residential Applications)

Conditional Parts - 10 years (Residential Applications)
