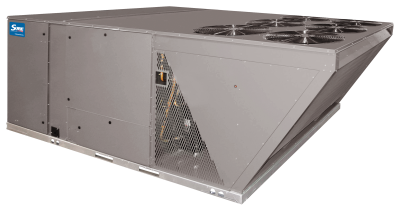

RLNL-G Resolute Line Packaged A/C

RLNL-G Resolute Line  Packaged A/C
  • R-410A HFC refrigerant.
  • Complete factory charged, wired and run tested.
  • Scroll compressors with internal line break overload and high-pressure protection.
  • Single stage compressor on all models.
  • Convertible airflow.
  • TXV refrigerant metering system on each circuit.
  • High Pressure and Low Pressure/Loss of charge protection standard on all models.
  • Solid Core liquid line filter drier on each circuit.
  • Single slab, single pass designed evaporator coil facilitates easy cleaning for maintained high efficiencies.
  • Cooling operation up to 125 degree F ambient.
  • Easily removable filter, blower, electric heat, and control access panels permits prompt service.
  • Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
  • One piece top cover and one piece base pan with drawn supply and return opening for superior water management.
  • Externally mounted refrigerant gauge ports for easy service diagnostics.
  • Factory or field-installed electric heat kits available up to 24 kW.
  • Easy to install plug-in; slip in, 100% fully modulating economizer.
  • Forkable base rails for easy handling and lifting.
  • Single point electrical connections.
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
  • Permanently lubricated evaporator, condenser motors.
  • Condenser motors are internally protected, totally enclosed with shaft down design.
  • 1 inch filter standard with slide out design.
  • Colored and labeled wiring.
  • Copper tube/Aluminum Fin coils.
  • Molded compressor plug.
  • Factory Installed ClearControl™, a Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control.
  • Factory Installed HumidiDry™ Dehumidification System (Refrigerant Reheat).
Specifications
  • Nominal sizes: 15-25 Tons
  • Up to 11.0 EER/14.2 IEER
  • Two-stage cooling
  • Coil Type: Find and Tube
  • Standard PlusOne® ClearControl/StandardPlusOne® HumidiDry®

AHRI Unitary Large HP C UL  US Listed

Documents

RLNL-G (15-25 Ton)

Parts - 1 Years (commercial applications)

Compressor - 5 Years (commercial applications)
