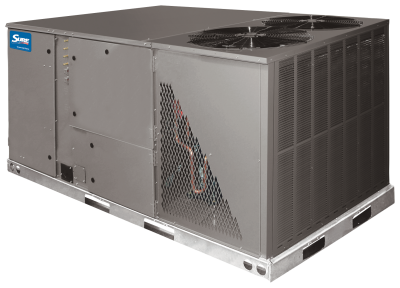

Packaged Air Conditioners

• R-410A HFC refrigerant
• Complete factory charged, wired and run tested
• Scroll compressors with internal line break overload and high-pressure protection
• Two independent refrigerant circuits each with a scroll compressor provide two stage cooling operation
• Convertible airflow – vertical downflow or horizontal sideflow
• Capillary tube metering system on each circuit
• High Pressure and Low Pressure/Loss of charge protection standard on all models
• Solid Core liquid line filter drier on each circuit
• Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintaining high efficiencies
• Cooling operation up to 125 degree F ambient
• Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream
• Hinged major access door with heavy-duty gasketing
• Slide Out Indoor fan assembly for added service convenience
• Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized
• Base pan with drawn supply and return opening for superior water management
• Forkable base rails for easy handling and lifting
• Single point electrical connections
• Internally sloped slide out condensate pan conforms to ASHRAE 62 standards
• High performance belt drive motor with variable pitch pulleys and quick adjust belt system
• Permanently lubricated evaporator, condenser and gas heat inducer motors
• Condenser motors are internally protected, totally enclosed with shaft down design
• 2 inch filter standard with slide out design
• 24 volt control system with resettable circuit breakers
• Colored and labeled wiring
• Copper tube/Aluminum Fin indoor coil
• Aluminum MicroChannel outdoor coil(s)
• Supplemental electric heat provides 100% efficient heating

• 3 phase Electro Mech Models
• Efficiencies up to 11.2 SEER
• Scroll^® Compressor

• Nominal Size: 7.5, 10, & 12.5 ton

Documents

Parts - 1 Year (commercial applications)

Compressor - 5 Years (commercial applications)
