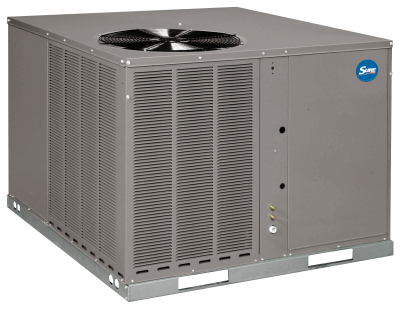

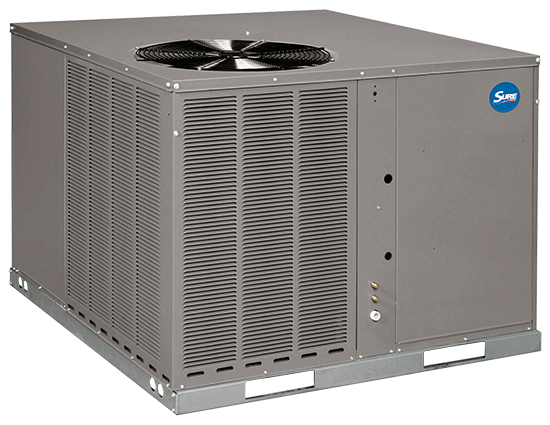

RACA14

Product Info
  • All models feature Scroll® compressors for maximum efficiency and quiet operation. The 5-Ton RACA15 model features Scroll UltraTech™ 2-Stage compressors with Comfort Alert™ diagnostics (see below), high/low pressure switches, and hard start kit.
  • Louvered condenser compartment to protect the coil against yard hazards and/or weather extremes.
  • One-piece top with a drip lip to help keep water off of the unit sides.
  • Drawn supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork.
  • Access panels have “weep holes” and channels to further help manage water run-off.
  • Side and down discharge options available on all models.
  • Easily accessible blower section complete with slide-out blower.
  • Externally mounted refrigerant connections are conveniently located for easy service diagnostics.
  • Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. Its easier to clean and has a more robust surface.
  •  Supplemental electric heat strips up to 15 kW are available (field or factory installed) for periods of extreme cold temperatures. Single point wiring simplifies installation.
  • All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
  • Easily accessible control box.
  • Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions.
  • Solid core liquid line. Filter drier standard on all models (not shown).
  • Rugged baserail included for improved installation and handling.
  • Molded compressor plug.
  • Complete factory charged, wired and run tested.
  • A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality.

Specifications

  • 1 & 3 phase models
  • Scroll® Compressor
  • Micro Channel Coil
  • Nominal Size: 2 - 5 ton
C UL  US ListedAHRI Unitary Large HP

Documents

RACA14

Conditional Parts - 10 Years Registration Required (residential applications)

Compressor - 10 Years (1 & 3 phase, residential applications)
