Packaged Air Conditioners

RACDZT Renaissance Line Packaged A/C

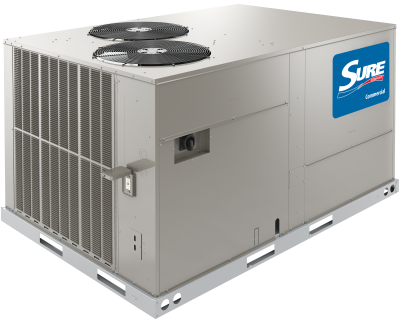

RACDZT Renaissance Line  Packaged A/C
  • Factory charged with R410A HFC refrigerant
  • Wired and run tested
  • Scroll compressors with internal line break overload and high pressure protection
  • Model RACDZT has a two-stage compressor
  • Convertible airflow - vertical down flow or horizontal side flow
  • Single-point electrical connections
  • Forkable base rails for easy handling and lifting
  • Cooling operation up to 125°F ambient
  • MicroChannel evaporator and condenser coil
  • Diagnostics with Dual 7-Segment LED Display
  • One-piece top cover and one-piece base pan with drawn supply and return opening
  • Two-piece control door
  • 1/4 turn fasteners on filter access door
  • Color-coded and labeled wiring
  • External lockable gauge ports
  • TXV refrigerant metering system
  • Solid-core liquid line filter drier
  • High pressure and low pressure/loss of charge protection
  • Insulation encapsulated throughout entire unit
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system
  • Variable Frequency Drive (VFD) blower is standard on Model RACDZT
  • New product footprint with matching connections
  • Improved factory lead times
Specifications
  • Nominal sizes: 7.5-12.5 Tons
  • Up to 11.2 EER/14.8 IEER
  • Two-stage cooling
  • Coil Type: Full MicroChannel
  • Optional PlusOne® ClearControl/OptionalPlusOne® HumidiDry®

C UL  US Listed

Documents

RACDZT (7.5-12.5 Ton)

Compressor

3 Phase, Commercial Applications................Five (5) Years


Aluminized Heat Exchanger

3 Phase, Commercial Applications...............Ten (10) Years


Stainless Steel Heat Exchanger

3 Phase, Commercial Applications .........Twenty (20) Years


Parts

3 Phase, Commercial Applications................One (1) Year
