Commercial Packaged Heat Pump

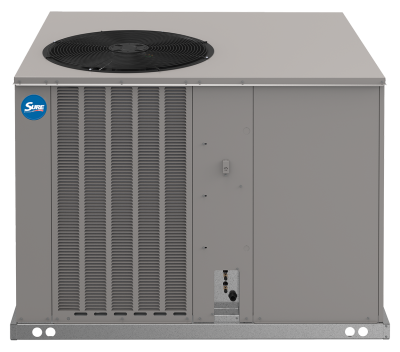

RHPA/XZR Vantix Line iR Packaged Heat Pump
- Louvered Condenser Compartment: Protects the coil against yard hazards
- One-piece Top with Drip Flange: Helps to keep water out of the unit
- Supply and Return Air Openings: Feature a one-inch tall flange to prevent water migration into the ductwork
- Access Panels: Easily removable and provides access to necessary components for serviceability
- Side and Down Discharge Options: Available on all models (Shipped horizontal flow standard)
- Easily Accessible Blower Section: Features a slide-out blower
- Conveniently Located Refrigerant Connections: For easy service diagnostics. Low pressure/loss of charge protection is standard on all models
- Evaporator Coils: MicroChannel evaporator coil delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils
- Condenser Coils: “A” cabinet condenser coil features enhanced fins for better heat transfer and rifled copper tubing for greater efficiency. “X” cabinet condenser coil uses the latest microchannel technology for the most effective method of heat transfer
- Supplemental Electric Heat Strips: Up to 15 kW are available (field or factory installed) for periods of extreme cold temperatures. Single point wiring simplifies installation
- Easily Accessible Control Box
- Thermal Expansion Valve: Is standard on all models and provides superior superheat control, reliability, and energy efficiency at all operating conditions
- Filter Drier: Is standard on all models
- Rugged baserail: Included for improved installation and handling
- Reversing Valve Directs Flow of Refrigerant: And reverses the refrigerant flow when heating is required
Specifications
- Cooling Efficiency: 13.4 SEER2
- Nominal Sies: 2 to 5 Ton
- Cooling Capacities: 22.8 kBTU to 56 kBTU
Documents
RHPA/XZR
Residential Applications:
Conditional Parts (Registration Required): 10 years
Compressor: 10 Years
Commercial Applications:
Parts: 1 Years
Compressor: 5 Years
